DK-100USH-100L
Short Description:
DK-100USH-120L

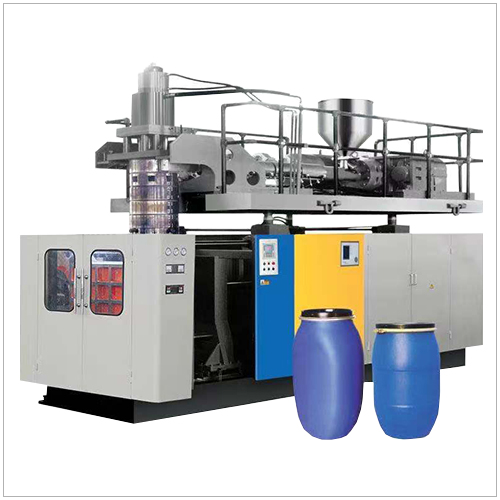

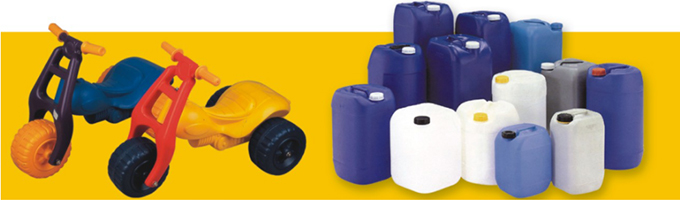

DK-100USH-120L series automatic high speed hollow molding machine can produce chemical packaging barrels, food, building paint, drug packaging bucket, blow tool bags, car tank, car tank, car hollow accessories, flexible plate, hollow seats, large blow pipe fittings, industrial, agriculture, military and other industries. This machine is especially suitable for the hollow blow molding of PE, PP and other raw materials, production capacity of 360 mode / hour (empty cycle).
Basic configuration:
Die head: vertical advanced first-out structure
Extrusion system: imported automatic temperature control device, screw driven by + hard tooth gear box to achieve stepless speed control
Die ding device: hydraulic fixed double pull rod open and closing mechanism, good stability
Hydraulic system: adopt servo control, energy saving and electricity, opening and closing mode, accelerate speed and improve production.
Electric control system: using the Japanese programmable controller, all using the world famous brand electrical components.

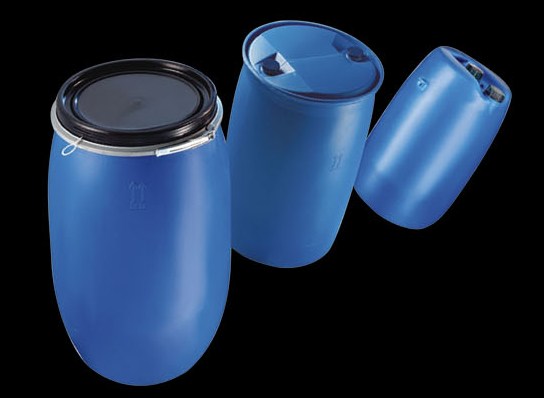

This Seres is mainly applcable to the production of varous packing bareks with PE and PP materal and capacity between20-120L.tobox atomoble pats such as gas tank.wind pipe and other large and medium-sized plastic hollowproducts.The machine equipped with an accumulator with materials storage capacity up to 12kg.it is the key for making the good qualityof lage size industrial container. Top brand name closed loop hydraulic system ensures the perfomance of the machine,as weli as the less power consumption.
Main technical parameters：
| Technical parameters |
| Model Unit DK-100USH-120L |
| Max .product volume L 120 |
| Dry cycle pc / h 360 |
| Main screw diameter mm 100 |
| Screw L/D ratio L/D 24 |
| Plasticizing capacity (HDPE) Kg/hr 180 |
| Heating section number zone 5 |
| Heating power kw 25 |
| Main motor power (Squeeze out ) kw 55 |
| Oil pump motor power (Servo motor) kw 22 |
| Wall thickness motor power kw 4 |
| Clamping force kn 500 |
| Template spacing mm 600-1400 |
| Template size ( wide x high ) mm 1100x1600 |
| Storage capacity (Die head) L 12 |
| Heating power(Die head) kw 23 |
| Heating section number(Die head) zone 4 |
| Hydraulic system pressure Mpa 120 |
| Air pressure Mpa 0.8 |
| Air emissions m3/h 60 |
| Cooling water pressure Mpa 0.3 |
| Cooling water discharge t / h 5 |
| Average energy consumption kw 42 |
| Total power kw 95 |
| Machine dimension(LxWxH) m 6.6x2.5x5.2 |
| Total weight ton 17.5 |
