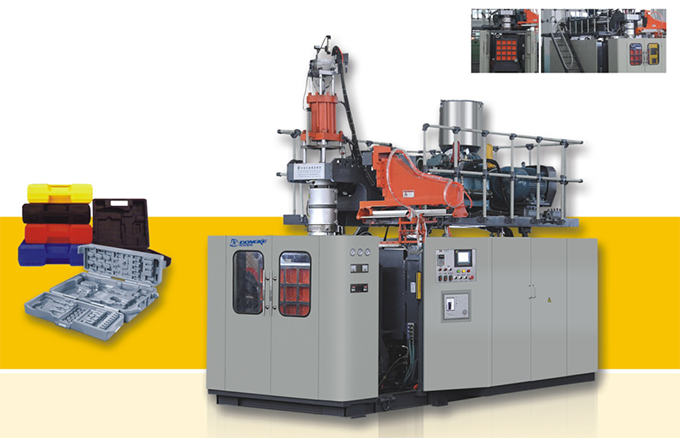

DK-30USH-30L

Short Description:

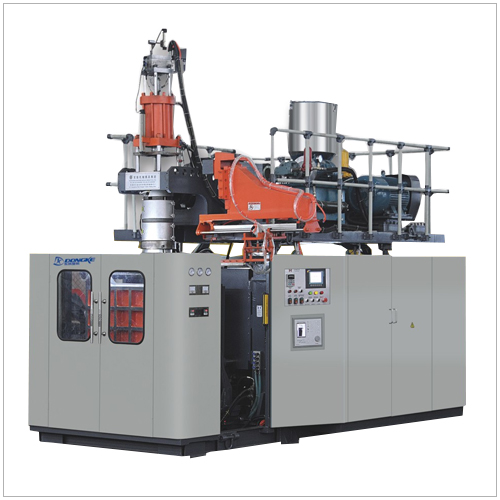

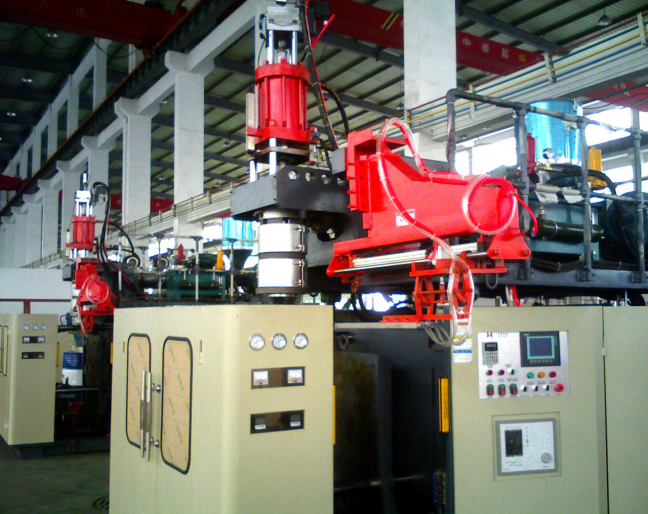

DK-30USH-30L

The equipment is a storage type longitudinal wall thickness servo control mode, equipped with stretching, mold opening, pressure ring, mechanical hand taking products and other functions. Suitable for the production of chemical packaging poke, tools, bags, platform boards, toys, automotive components, lampshade, buoys, roadblocks and other medium-sized hollow products.

Control system description: using German Siemens PLC, high reliable industrial class man-machine interface. Chinese and English operation, action and faults are capable of monitoring and alarm. Professional version of the software, system integration, reliable, error check, simple maintenance. Very easy to operate. The servo system adopts the Japanese MOOG 100-point control system. Real-time response, the control is accurate, smooth, with the curve tracking and feedback display function.

Ydraulic system: adopt proportional energy saving double pump control system, hydraulic components adopt imported hydraulic direction valve and imported VQ35 superstatic pump. Seals are made of a Japanese NOK seal. Air-level servo valve. The system has the advantages of energy saving, stability and reliability, fast reaction speed and long service life. Equipped with an independent international standard servo oil source system.

Die head: adopt advanced first flow channel structure to ensure the uniform strength after melt fusion. Extrusion speed: 0.2-2.0Kg/S, depending on the viewport mode size. Primary extrusion amount: 2Kg.. Material: alloy steel, heat treatment.

Extrout system: screw diameter: 85 long diameter ratio: 30 / 1, cylinder, screw material: 38CrMOALA nitride steel. Surface nitride layer thickness 0.4-0.6MM, hardness HV900.
Reducer box: hard tooth grinding reduction box, 39 thrust inlet bearing.
Drive power: 37KW, frequency conversion control, energy saving of 30%.
Screw speed: 10-70rpm,
Plasping capacity: 120Kg/hr.
Production efficiency: about 60Pc/hr, with a total installed capacity of 96KW.


Product Detail

FAQ

Product Tags

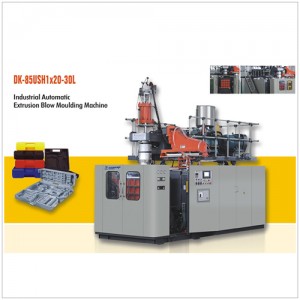

DK-85USH1x20-30L

Industrial Automatic
Extrusion Blow Moulding Machine

141

25

3



Main technical parameters:

Model Unit DK-30USH-30L
Max .product volume L 30
Dry cycle pc / h 1000
Main screw diameter mm 85
Screw L/D ratio L/D 25
Plasticizing   capacity (HDPE) Kg/hr 150
Heating   section number zone 4
Heating   power kw 25
Main   motor power (Squeeze out ) kw 30
Oil   pump motor power (Servo motor) kw 18.5
Wall   thickness motor power kw 5.5
Clamping   force kn 400

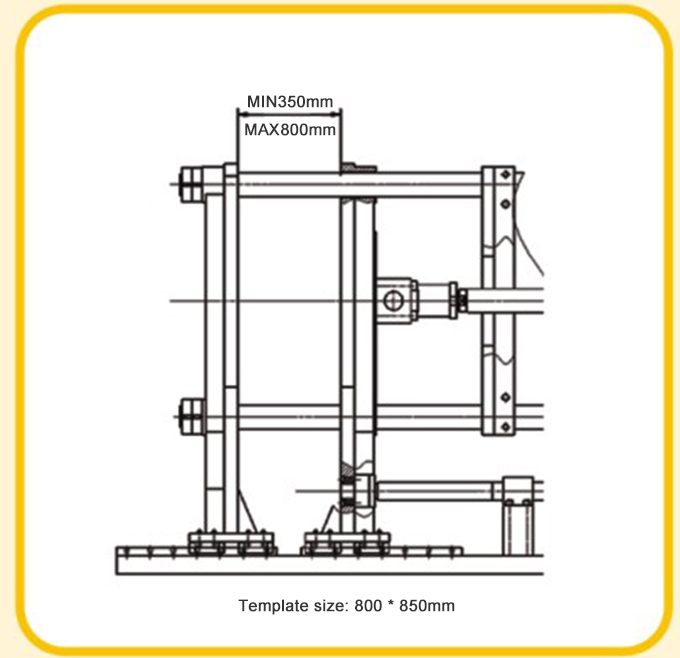

Template   spacing mm 400-850

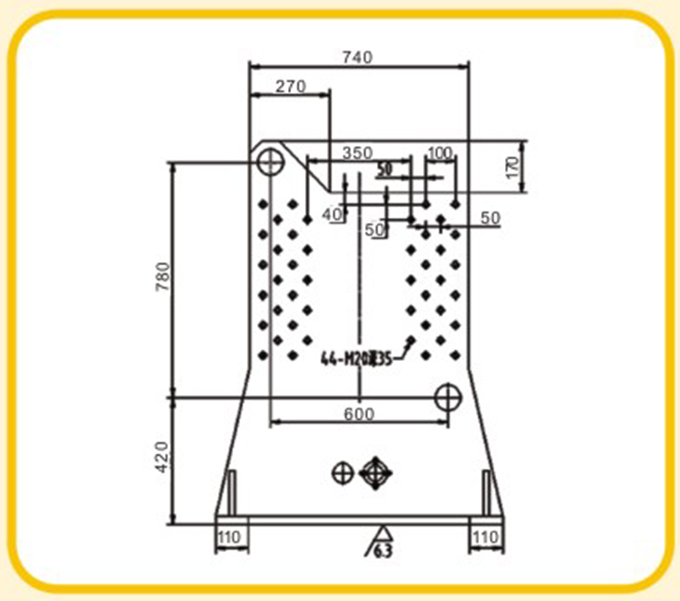

Template   size ( wide x high ) mm 900x740
Heating   power(Die head) kw 12
Heating   section number(Die head) zone 5
Hydraulic   system pressure Mpa 120
Storage   of material from die head L
Air   pressure Mpa 0.8
Air   emissions m3/h 60
Cooling   water pressure Mpa 0.3
Cooling   water discharge t   / h 5
Average   energy consumption kw 45
Total   power kw 70
Machine   dimension(LxWxH) m 4.5x2.2x2.8
Total   weight ton 14

Control system identification:

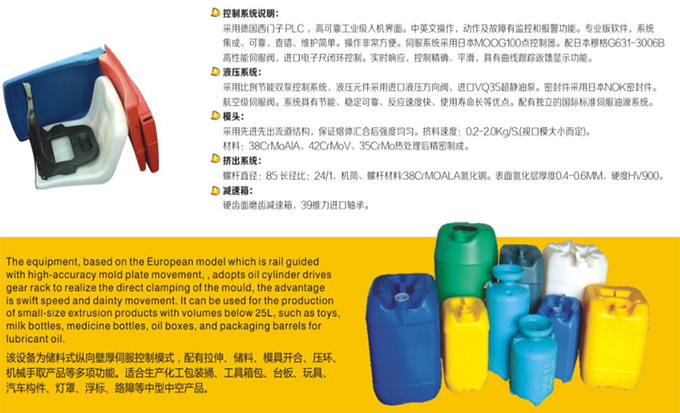

It adopts German Siemens PLC, which can be regarded as an industrial-grade man-machine interface. Operation in Chinese and English, monitoring and alarm functions for actions and failures. Professional version software, system integration, reliable, easy to check and maintain, and very convenient to mention. Servo system adopts Japanese MOOG100 point controller. It is equipped with Japanese Moog G631-3006B high-performance servo valve and imported electronic R closed-loop control. Real-time response, precise and smooth control, with curve tracking feedback display function.

Hydraulic system:

It adopts a proportional energy-saving double pump control system, and the hydraulic components adopt imported hydraulic direction thresholds and imported VQ35 super static oil pumps. The seal adopts Japanese NOK seal. Aviation grade servo valve. The system has the advantages of energy saving, stability and reliability, fast response speed and long service life. Equipped with an independent international standard servo oil source system.

Die:

The first-in-first-out runner structure is adopted to ensure uniform strength after the melt is merged. Extrusion speed: 0.2-2.0Kg/S (depending on the size of the mouth die). Material: 38CrMoAWA, 42CrtMoV, 3SCrMo are precision made after heat treatment.

Extrusion system:

Screw diameter: 85 Length ratio: 24/1, barrel and screw material 38CrMOALA nitride steel. The thickness of the epizyme hydrogenation layer is 04-06MM. The hardness is HV900.

Gearbox:

Hard tooth surface grinding gear reducer, 39 thrust imported bearings.

The equipment,based on the European model which is rail guided with high-accuracy mold plate movement.,adopts oil cylinder drives gear rack to realize the direct clamping of the mould,the advantage is swift speed and dainty movement.It can be used for the production of small-size extrusion products with volumes below 25L,such as toys, milk bottles,medicine bottles,oil boxes,and packaging barrels for lubricant oll.
