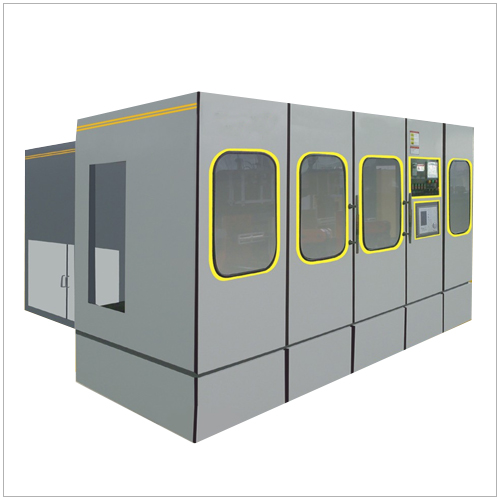

DK-75UF2x1.7L

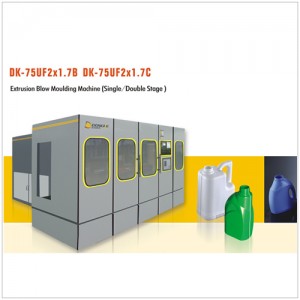

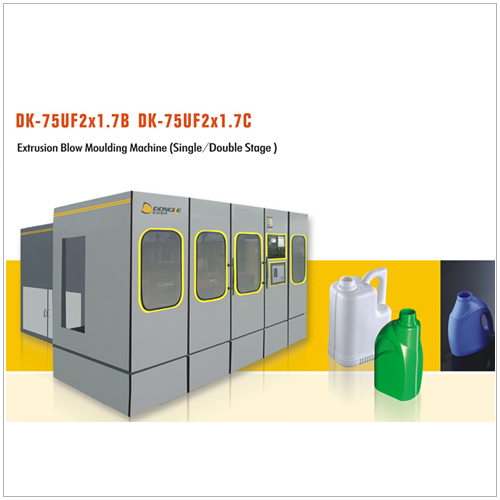

DK-75U2x1.7B DK-75U2x1.7C

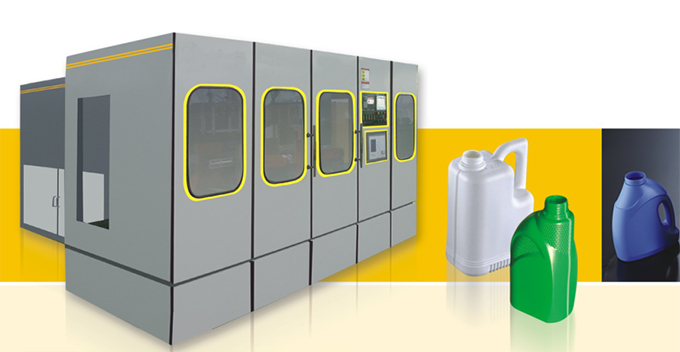

Extrusion Blow Moulding Machine(Single/Double Stage)

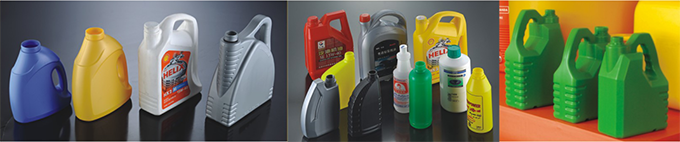

The equipment based on the European model which is rail guided with high-accuracy mold plate movement.adopts oil cylinder drives gear rack to realize the direct clamping of the mould.The advantage is swift speed and dainty movement.It can be used for the production of small-size extrusion products with volumes below 51 the following oil bottle,kind of hollow products,this machine can be furnished with rotary automatic incision function.
Main technical parameters：
| Model | Unit | DK75UF2x1.7L |
| Max .product volume | L | 7 |
| Dry cycle | pc / h | 1000 |
| Main screw diameter | mm | 75 |
| Screw L/D ratio | L/D | 25 |
| Plasticizing capacity (HDPE) | Kg/hr | 120 |
| Heating section number | zone | 4 |
| Heating power | kw | 22 |
| Main motor power (Squeeze out ) | kw | 30 |
| Oil pump motor power (Servo motor) | kw | 11 |
| Wall thickness motor power | kw | 4 |
| Clamping force | kn | 400 |
| Template spacing | mm | 148-550 |
| Template size ( wide x high ) | mm | 500×480 |
| Heating power(Die head) | kw | 12 |
| Heating section number(Die head) | zone | 5 |
| Hydraulic system pressure | Mpa | 120 |
| Storage of material from die head | L | |
| Air pressure | Mpa | 0.8 |
| Air emissions | m3/h | 60 |
| Cooling water pressure | Mpa | 0.3 |
| Cooling water discharge | t / h | 5 |
| Average energy consumption | kw | 25 |
| Total power | kw | 70 |
| Machine dimension(LxWxH) | m | 4.5×3.2×2.8 |
| Total weight | ton | 9 |
