Short Description:

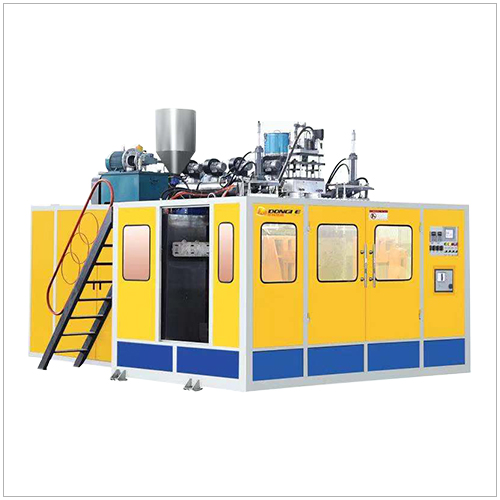

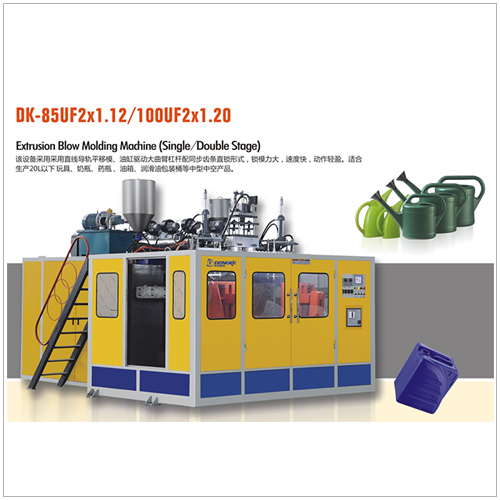

DK-85UF2x1.20L

The equipment is a continuous longitudinal wall thickness servo control mode, equipped with stretching, closing, mold opening and closing, robot products and other functions. Suitable for the production of chemical packaging poke, tools, bags, platform boards, toys, automotive components, lampshade, buoys, roadblocks and other medium-sized hollow products.

Control system description: using German Siemens PLC, high reliable industrial class man-machine interface. Chinese and English operation, action and faults are capable of monitoring and alarm. Professional version of the software, system integration, reliable, error check, simple maintenance. Very easy to operate. The servo system adopts the Japanese MOOG 100-point control system. Real-time response, the control is accurate, smooth, with the curve tracking and feedback display function.
Hydraulic system: adopt proportional energy saving double pump control system, hydraulic components adopt imported hydraulic direction valve and imported VQ35 superstatic pump. Seals are made of a Japanese NOK seal. Air-level servo valve. The system has the advantages of energy saving, stability and reliability, fast reaction speed and long service life. Equipped with an independent international standard servo oil source system.
Die head: adopt advanced first flow channel structure to ensure the uniform strength after melt fusion. Extrusion speed: 0.2-2.0Kg/S, depending on the viewport mode size. Primary extrusion amount: 2Kg.. Material: alloy steel, heat treatment.
Extrout system: screw diameter: 85 long diameter ratio: 30 / 1, cylinder, screw material: 38CrMOALA nitride steel. Surface nitride layer thickness 0.4-0.6MM, hardness HV900.
Reducer box: hard tooth grinding reduction box, 39 thrust inlet bearing.
Drive power: 37KW, frequency conversion control, energy saving of 30%.
Screw speed: 10-70rpm,
Plasping capacity: 120Kg/hr.
Production efficiency: about 60Pc/hr, with a total installed capacity of 96KW.
