IBC-1000L

Short Description:

IBC-1000L

 equipment introduction

hydraulic system :

Japanese sumitomo brand hydraulic gear pump.

Japanese yuken brand hydraulic valves, die shift ratio adjustment control,

quick reverse, soft and noiseless.

The hydraulic hose, joint and seal are made of the British Hallite American

Goodyear Or park brand

Electric System

Control system: GEFRAN (GEFRAN) 300 point intelligent control system

The temperature control module adopts the Italian jefferen automatic temperature control module

The servo motor and driver are of wecham or mund brand

Extrusion part:

The screw rod and cylinder are treated with 38CrMoALA high quality alloy

steel and ion nitrification.

The special design of screw type makes the material plasticize evenly, the

color mixing effect is remarkable, and the different screw type can be equipped with different materials.

Choose GUOMAO brand for reduction gear, frequency conversion motor drive, precise and fast operation, low noise, small extrusion error.

The whole machine can be freely up and down, and can be adjusted in the

right and left range to adapt to different sizes of the mold, and achieve the best length of waste edge.

Die head and air blowing systerm:

Die head mandrel special design, billet strength and uniform wall

thickness.

The air system is specially designed for human nature. The air nozzle can be adjusted in all directions and can be adjusted in three dimensions to adapt to the hollow products of different forms.

Control system: GEFRAN (GEFRAN) 300 point intelligent control system

Clamping part: German experts optimize the design, in line with European

standards

Open and close mold guidance, adopt double translation high-precision double linear guide (low resistance, fast speed, high guidance precision, long wear resistance life)



Technical Data for Blow Molding

General Issues

Machine operating manual including Hydraulic, Pneumatic, Assembly drawing, Cooling water.

IBC Special equipment

Max. volume of product:  IBC Special equipment

Total weight 60 ton

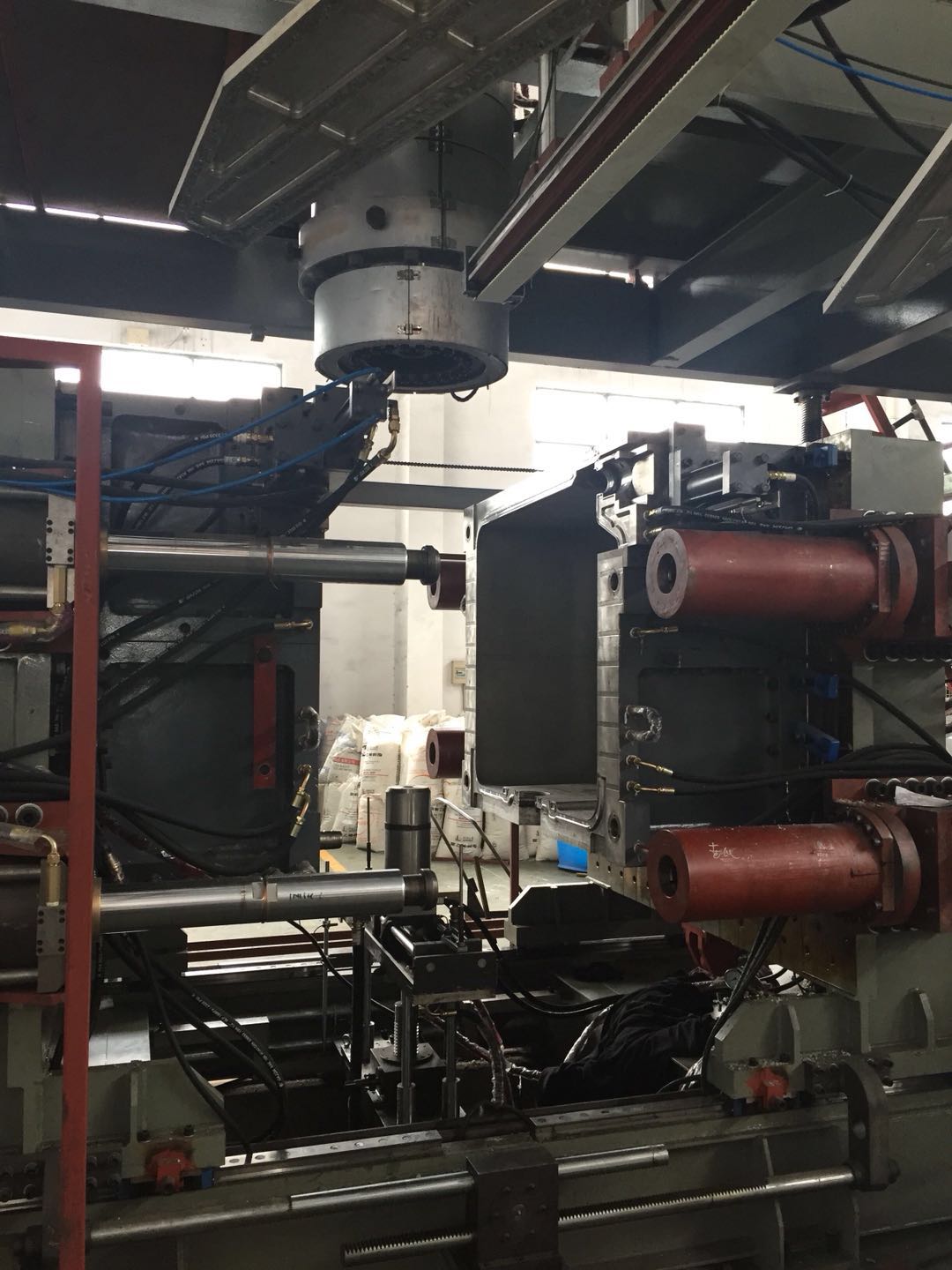

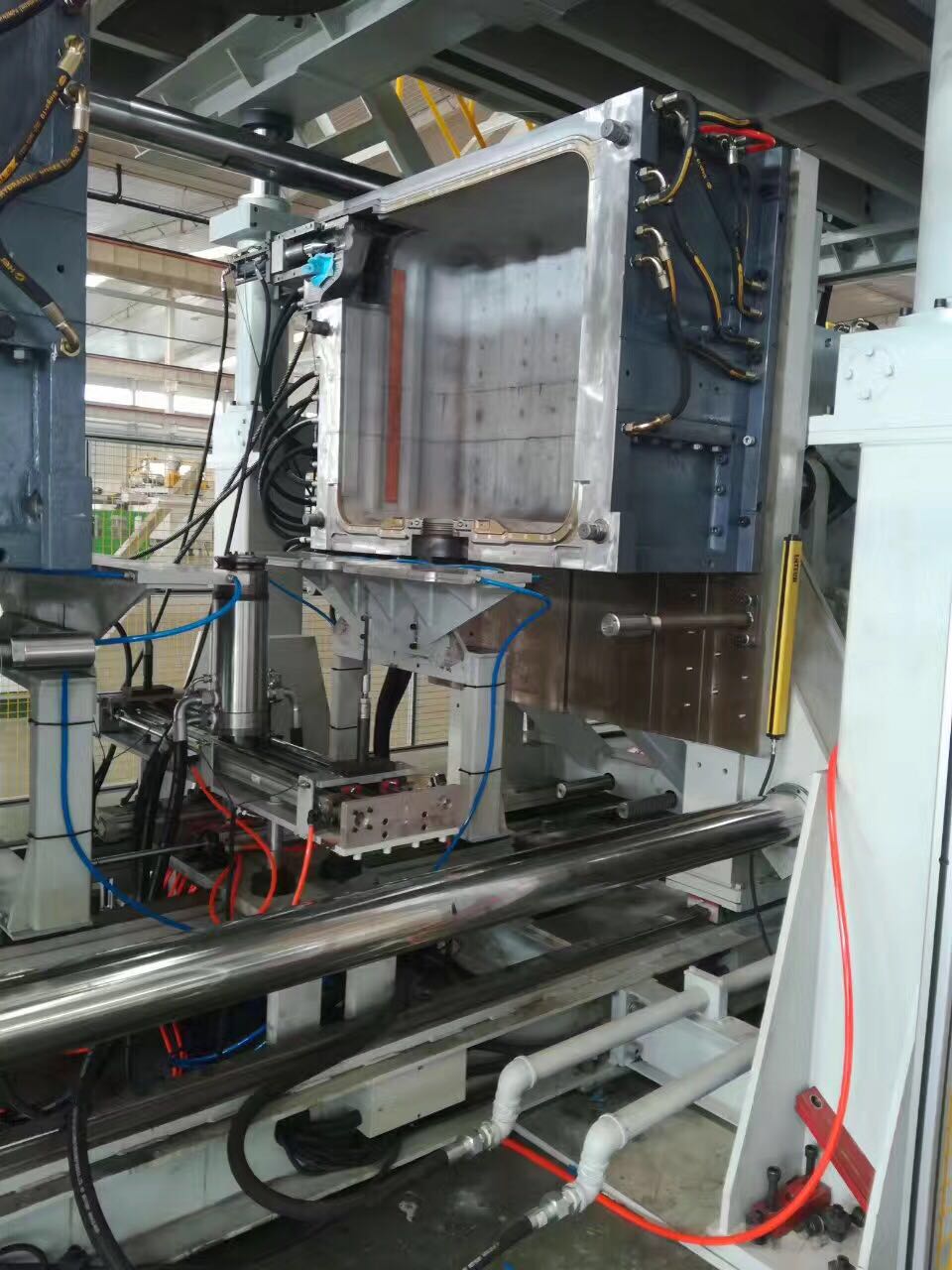

Clamping Unit

Principle: bi-direction synchronous clamping device with double axis.

Linear roller guidance horizontal

Clamping force: 1800KN

Mold platens H x W : 1700 x 1800 mm

Distance between the platens: 1000-3000 mm

Clamping unit stroke: 1000 mm

Die Head

Type of die head: layers accumulator.

FIFO

Max. storage volume: 50L(37.5KG-HDPE)

Die diameter480-610mm

300 point WDS system controller

Type of temperature sensors: K

Power of heating: 80 KW



 Extruder System

Extruder should be adequate to work with HDPE, PP

Screw diameter: 90mm/38:1(One layer);75mm/38 ×2(Two layers)

Nitride treatment barrel and screw.

Plasticizing efficiency: 600 kg/h (HDPE)

Feeding zone grooved with cooling water.

Type of temperature sensors: K

DC motor drive: 185KW (DC)(One layer);132KW (DC)×2Two layers)

Cast-aluminum heater with heater preserving and protection cover of stainless steel.

Heating power: 48 KW

Cooling by 6 cooling fans one extrusion system.

Raw material hopper with a window.



Blow System

Blow system mounted on linear guide under mold

Height adjustment mechanism 250 mm

Blow pin up/down stroke: 150 mm, controlled by hydraulic cylinder.



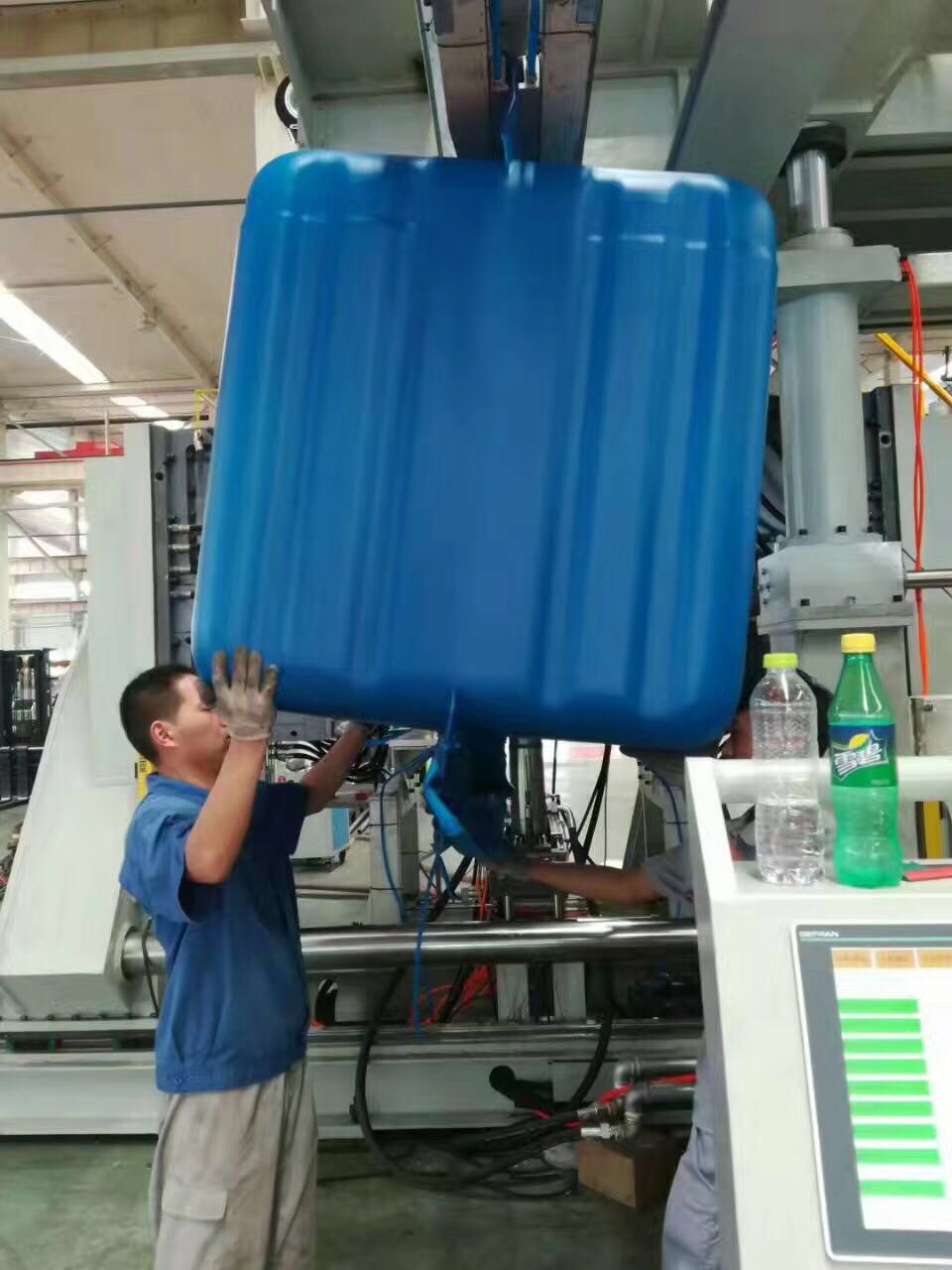

Take out system

Take out stroke 1600mm

Adopt Linear Guide and Synchronous belt transmission of motor to advanceandretreat

Gripper with the function :auto cooling water



Servo Hydraulic System

Servo motor:VEICHI

Servo control system:VEICHI

Servo valve: YUKEN

Servo oil source:7.5KW

Gear pump: SUMITOMO

Main Hydraulic Directional valves Use YUKEN

Motor power: 49KW



Pneumatic System

Separate service unit with filter for blow and move functions.

Pneumatic cylinders Airtec

Pneumatic valves Airtec

Max. pressure of all components: 10 bar

Bleed pressure: 8 bar

High/Low pressure for blow

Air supplier switch should be locked

Air consumptions: 3m3/min

Control System

Control System: GEFRAN

Servo WDS control system: GEFRAN 300 point

9.3Full color 10.4”

Full color10.4” HMI  AttachedGEFRAN).

Emergency stop push buttons (rotationally release) without key

All electric components needs to be for power supply 220V, 50Hz, controller DC24V, signal 0-10V

Total rated power: 321KW

Main components (Air switch, Contactor): Schneider; intermediate reply: Schneider

DC integrator:ETD

Linear transducer: GEFRAN

Proximity switch: Omron



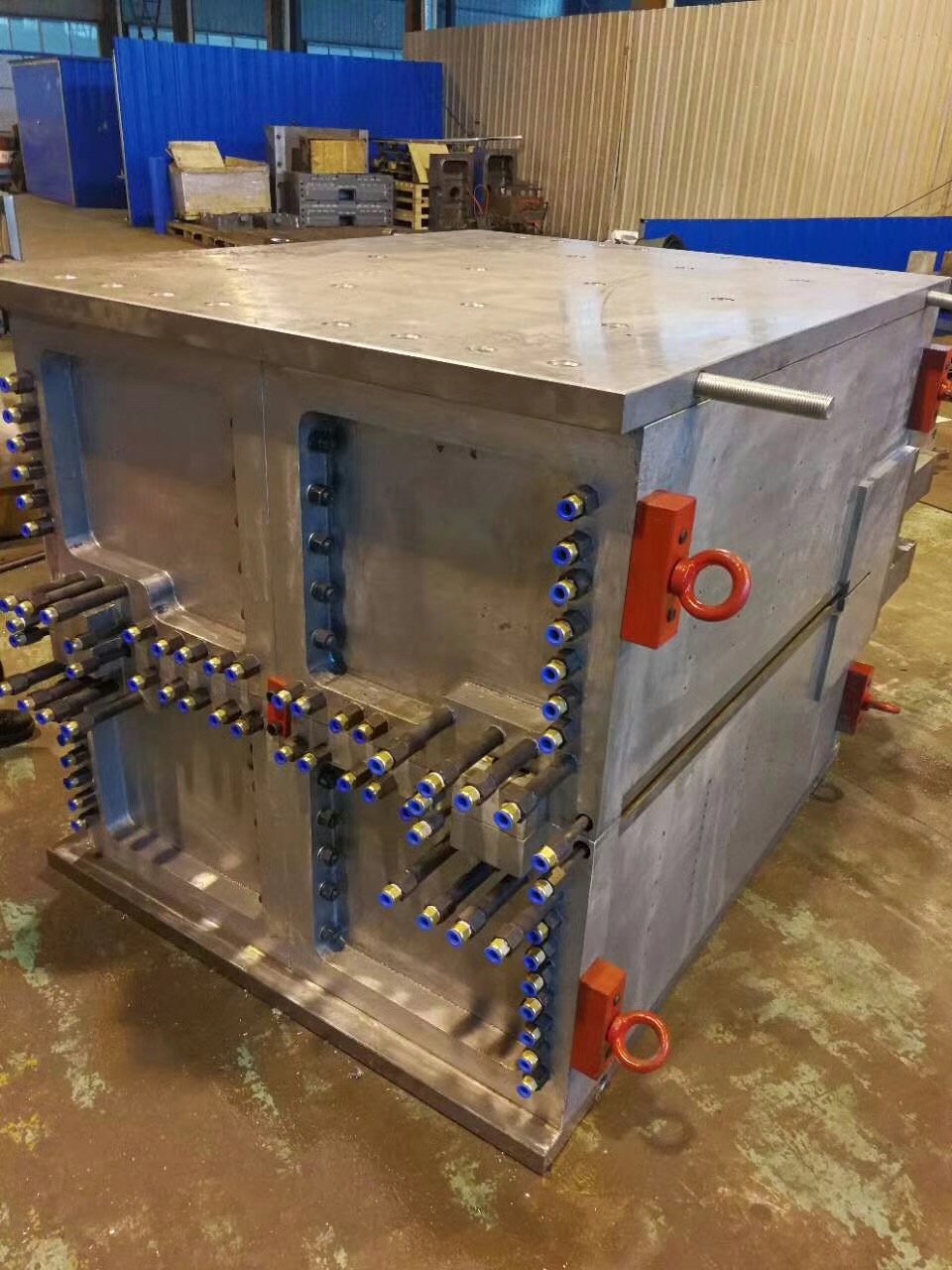

Cooling water

Separate cooling water circuit for Mold, Blow pin, Extruder feeding zone, Oil cooling.

Water consumptions: 20 m3/h



Machine frame

Clamping unit should be forward

Extruder stage up/down

Machine color: according requirement of customer

Overall dimensions of machine LxWxH: 10.9x 4.3m x 7.5m




Product Detail

FAQ

Product Tags

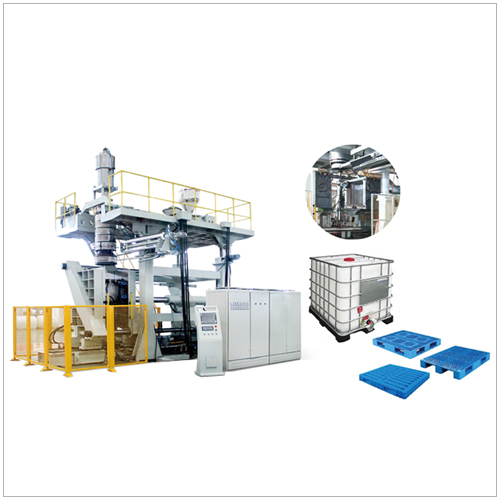

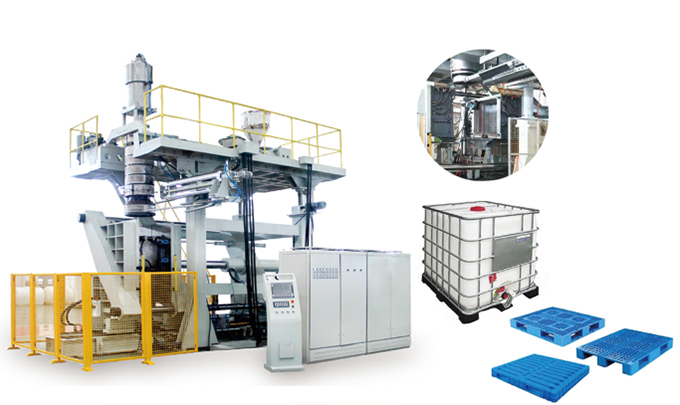

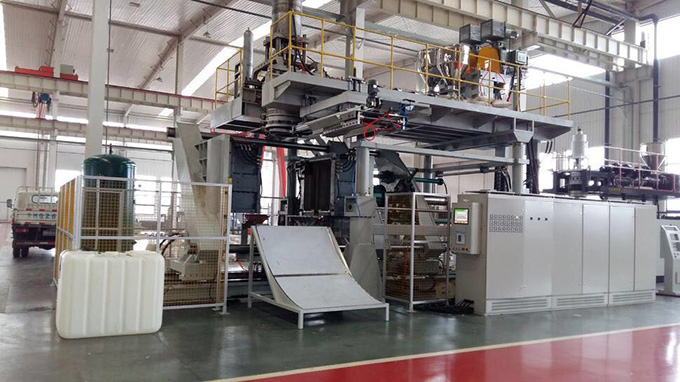

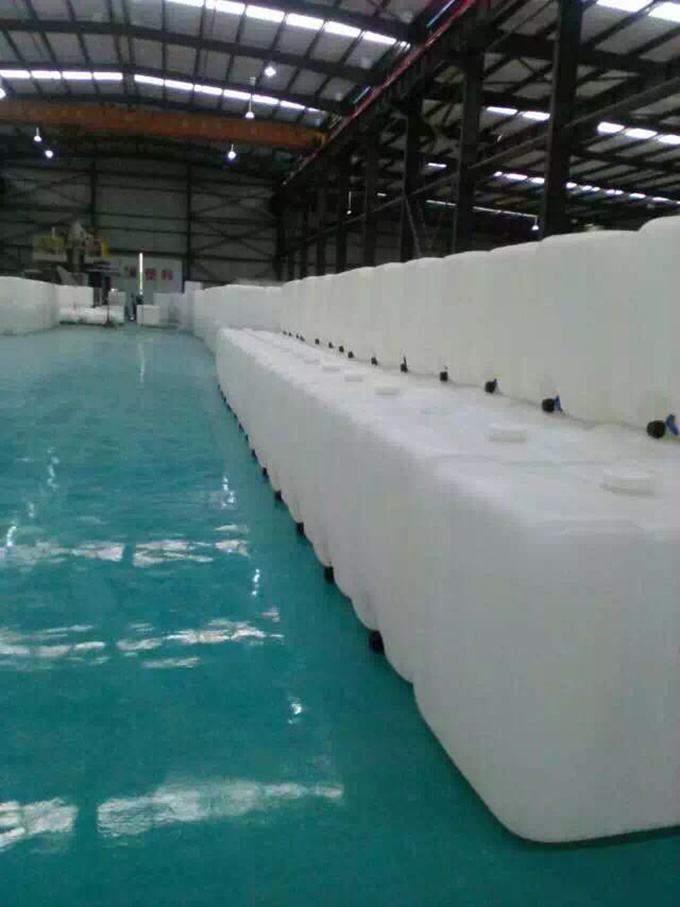

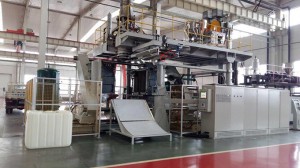

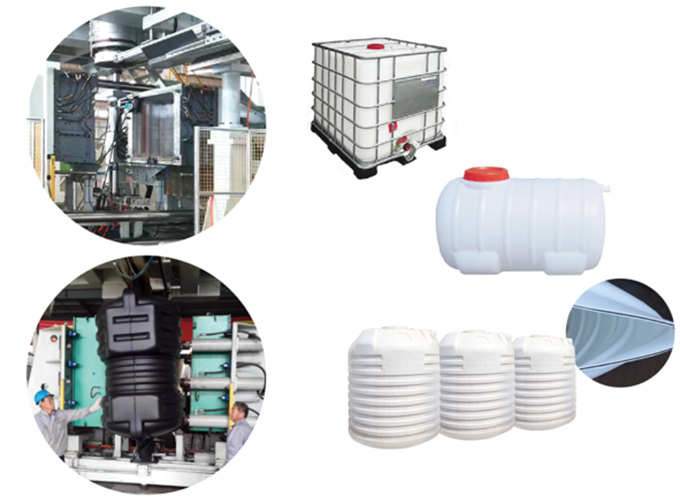

IBC Barrel Blow Moulding Machine

16111111

2

3

4

5

6

Description of control system:

Siemens PLC of Germany is adopted, high reliable industrial man-machine interface is adopted. Chinese and English operation, action and fault monitoring and alarm functions. Focus on the version of software, system integration, reliable, error checking, maintenance simple. The operation is very convenient. The servo system adopts Japanese Moog 100 point controller. Equipped with high performance servo valve of Muge g631-3006b, imported electronic ruler closed-loop control. Real time response, precise and smooth control, curve tracking and feedback display function.

Hydraulic system:

The proportional energy-saving double pump control system is adopted. The hydraulic components are imported hydraulic directional valve and imported VQ35 super static oil pump. Japanese NOK seals are used. Aviation grade servo valve. The system has the advantages of energy saving, stability and reliability, fast reaction speed and long service life. Equipped with independent international standard servo oil source system.

Die head:

The first in first out runner structure is adopted to ensure the uniform strength after the melt converges. Extrusion speed: 2 -- 3kg / S (depending on the size of the die).

Materials: 38crmoaia, 42crmov and 35CrMo were made after heat treatment.

Extrusion system:

Screw diameter: 120mm, length diameter ratio: 24 / 1, barrel and screw material: 38CrMoAl a nitrided steel. The thickness of nitriding layer is 0.4-0.6mm, and the hardness is hv900.

Gearbox:

Hardened gear grinding reducer, 39 thrust inlet bearing.

Main technical parameters:

Model Unit DK-1000USH
Max .product volume L 1000
Dry cycle pc / h 800
Main screw diameter mm 120*2
Screw L/D ratio L/D 28
Plasticizing   capacity (HDPE) Kg/hr 200*2
Heating   section number zone 6*2
Heating   power kw 30*2
Main   motor power (Squeeze out ) kw 55x2
Oil   pump motor power (Servo motor) kw 55
Wall   thickness motor power kw 11
Clamping   force kn 800
Template   spacing mm 1400-2500
Template   size ( wide x high ) mm 1500x1500
Heating   power(Die head) kw 50
Heating   section number(Die head) zone 8
Hydraulic   system pressure Mpa 150
Storage   of material from die head L     80
Air   pressure Mpa 0.8
Air   emissions m3/h 160
Cooling   water pressure Mpa 0.6
Cooling   water discharge t   / h 15
Average   energy consumption kw 80
Total   power kw 200
Machine   dimension(LxWxH) m 8.5x4.2x5
Total   weight ton 45
